100 Series Plate Rear Bar DIY Kit

🔧 Build your own 100 Series rear bar — and save serious coin

Laser-cut in-house to suit the 100 Series LandCruiser. Supplied as a DIY weld-together kit — every panel and bracket CNC-cut and ready to tack and weld. If you can lay a basic MIG weld (or know a mate who can), you can build it in a weekend.

• ✅ Laser-cut precision — everything lines up, no guesswork
• ✅ Heavy-duty 5mm plate, same engineering as our welded bars
• ✅ Save big versus a bought bar
• ✅ Australian-made, built by people who actually wheel

🧰 What you'll need: a MIG welder, angle grinder, clamps and a spare arvo.

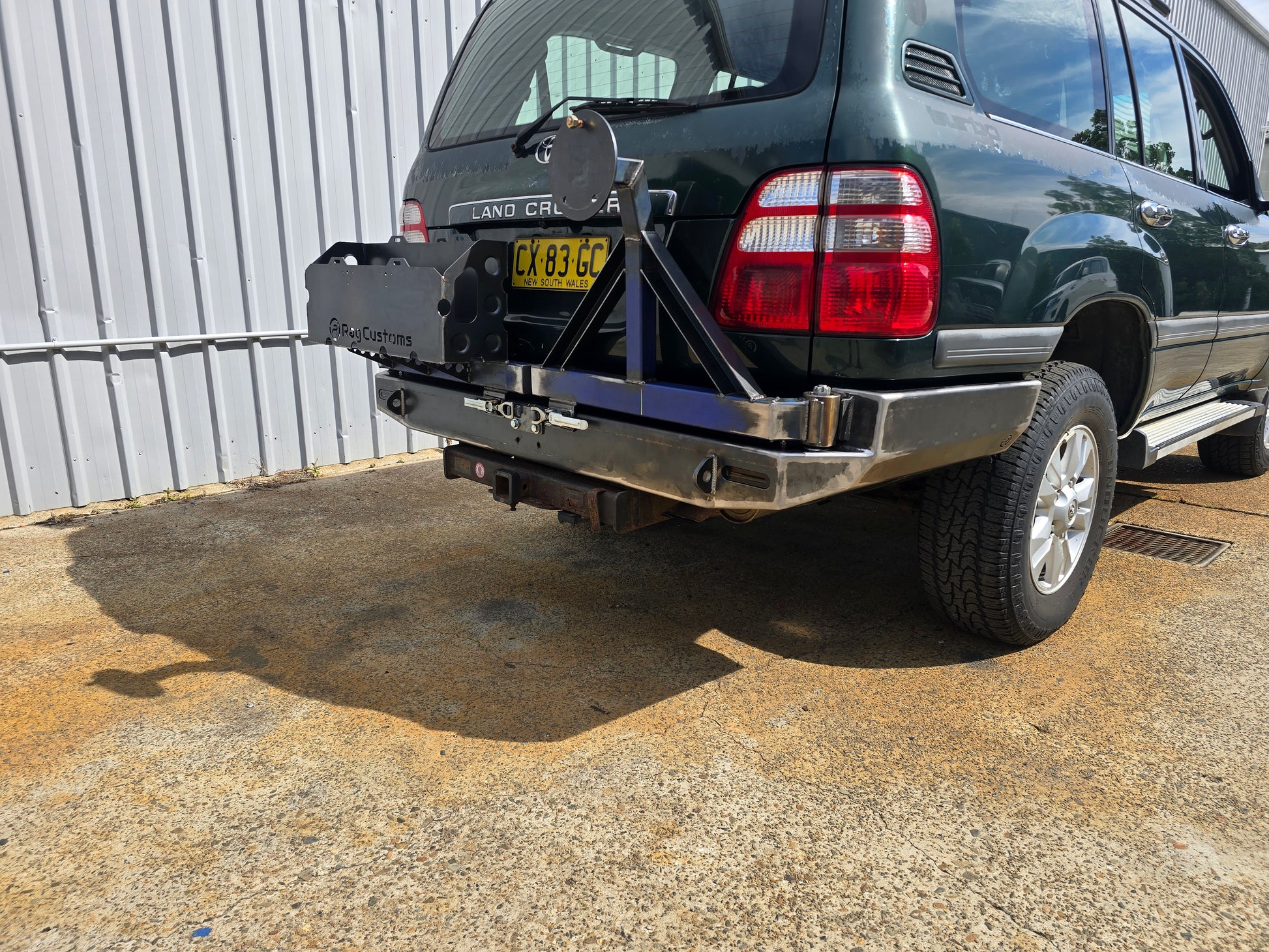

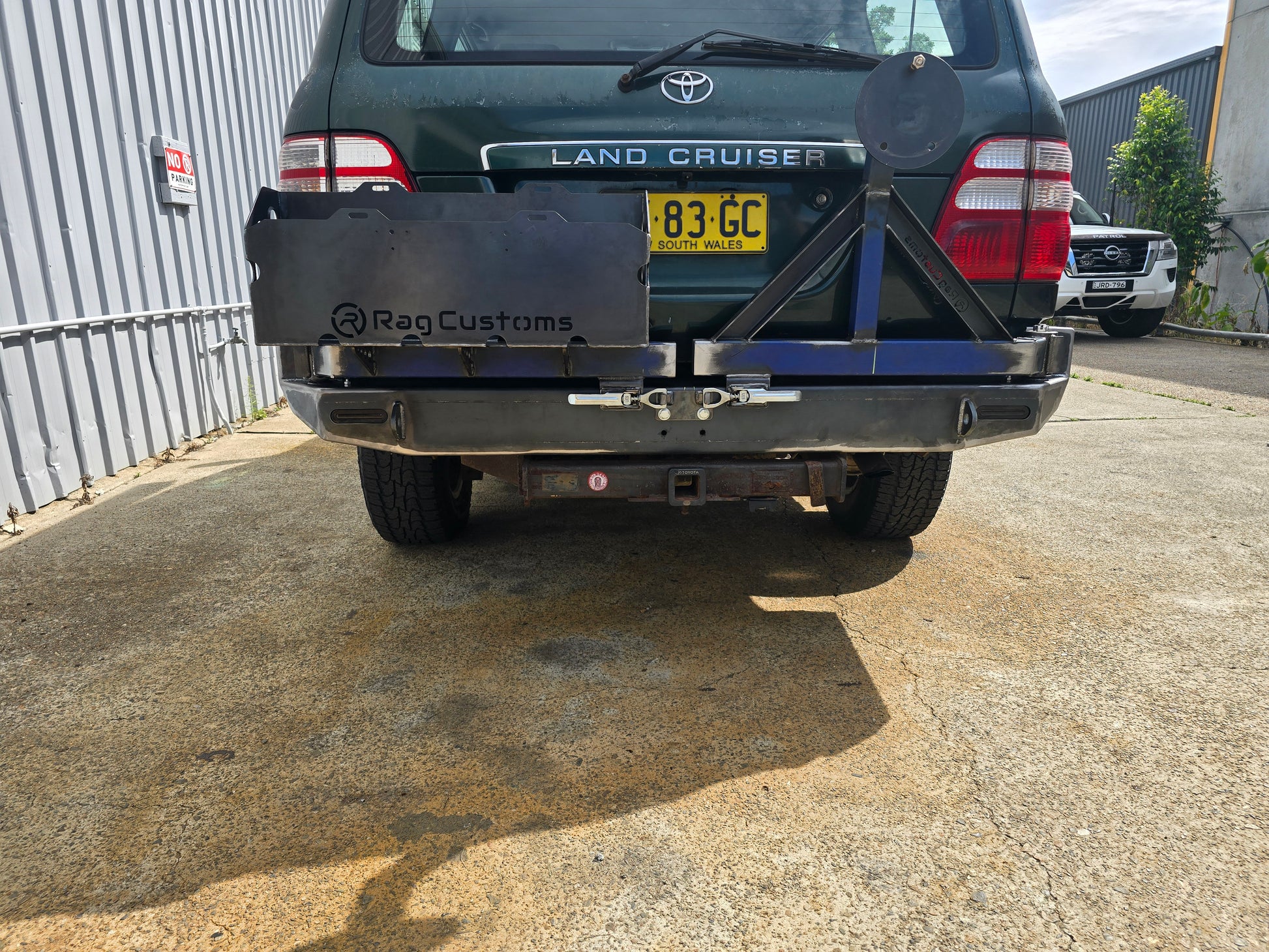

100 SERIES LANDCRUISER – PLATE REAR BAR (DIY WELD-TOGETHER KIT)

Built Tough. Built to Fit. Built by You.

Upgrade your 100 Series with a rear bar engineered for real offroad use, improved clearance, and a clean, modern finish. Supplied as a DIY weld-together kit, CNC laser-cut and ready for assembly in your own workshop.

💪 Heavy-Duty Construction

• Full 5mm mild steel plate construction
• 10mm chassis mounting brackets – bolts directly to factory mounting points
• Double braced wing supports tied back to chassis for maximum strength and rigidity

🔧 DIY Kit – Build It Your Way

• Straightforward weld-together assembly
• High-clearance design to improve departure angle
• Supplied raw and ready for fabrication
• All mounting hardware included

💡 Features

• LED tail lights INCLUDED as standard
• Compatible with most factory tow bar setups
• Optional tyre carrier and jerry can swing-away kits available

📦 What's Included

Bar Only Kit

• All folded 5mm components to build a complete rear bar
• Mudflap bracing mount
• LED tail lights
• All bolts and mounting brackets

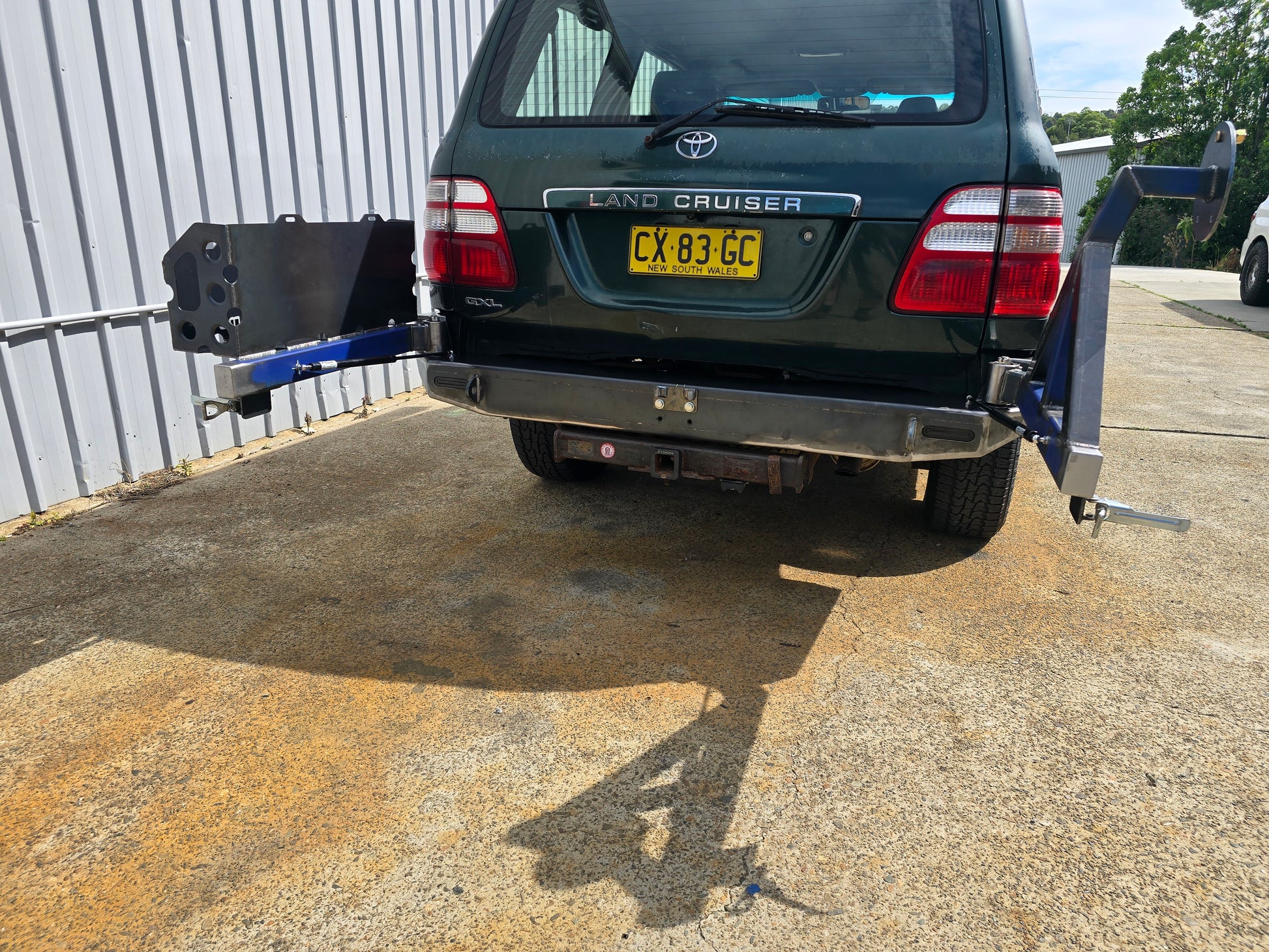

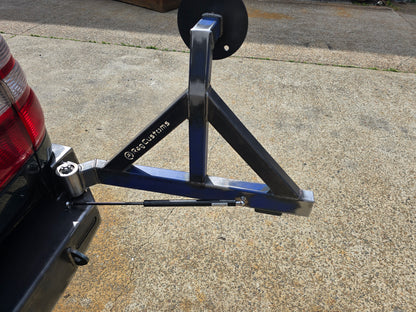

+ Tyre Swing Away (Optional Add-On)

• Laser cut, notched RHS arm
• Tyre upright with bracing
• Tyre carrier plate with studs pressed in
• Gas strut
• Stub axle
• Locking latch
• RHS end caps

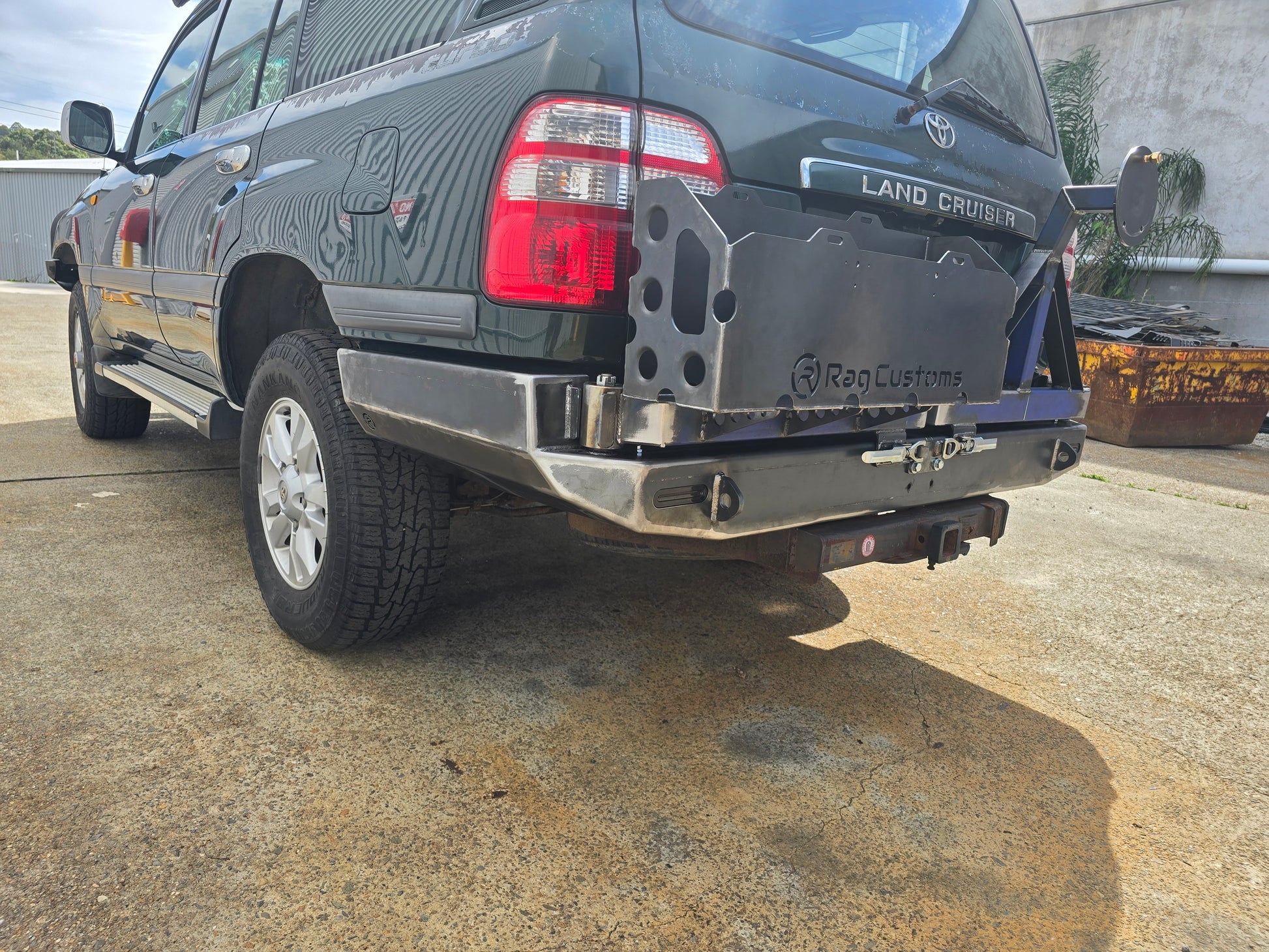

+ Jerry Can Swing Away (Optional Add-On)

• Twin jerry can holder
• Notched RHS arm
• Gas strut
• Stub axle
• Locking latch
• RHS end cap
• LED number plate lights

✅ Why Choose Rag Customs

• Designed and CNC manufactured in Australia
• Built for real 4WD use
• Save money by building it yourself without sacrificing strength
• Same design and engineering as our fully welded bars

🚚 Shipping

Australia-wide shipping available. Commercial addresses or depot pickup recommended for best rates.

⏱️ Lead Times

DIY kits – 7–10 working days | Welded bars – 21–28 working days

💬 Not sure it suits your rig? Message us your build and we'll confirm fitment before you buy.
