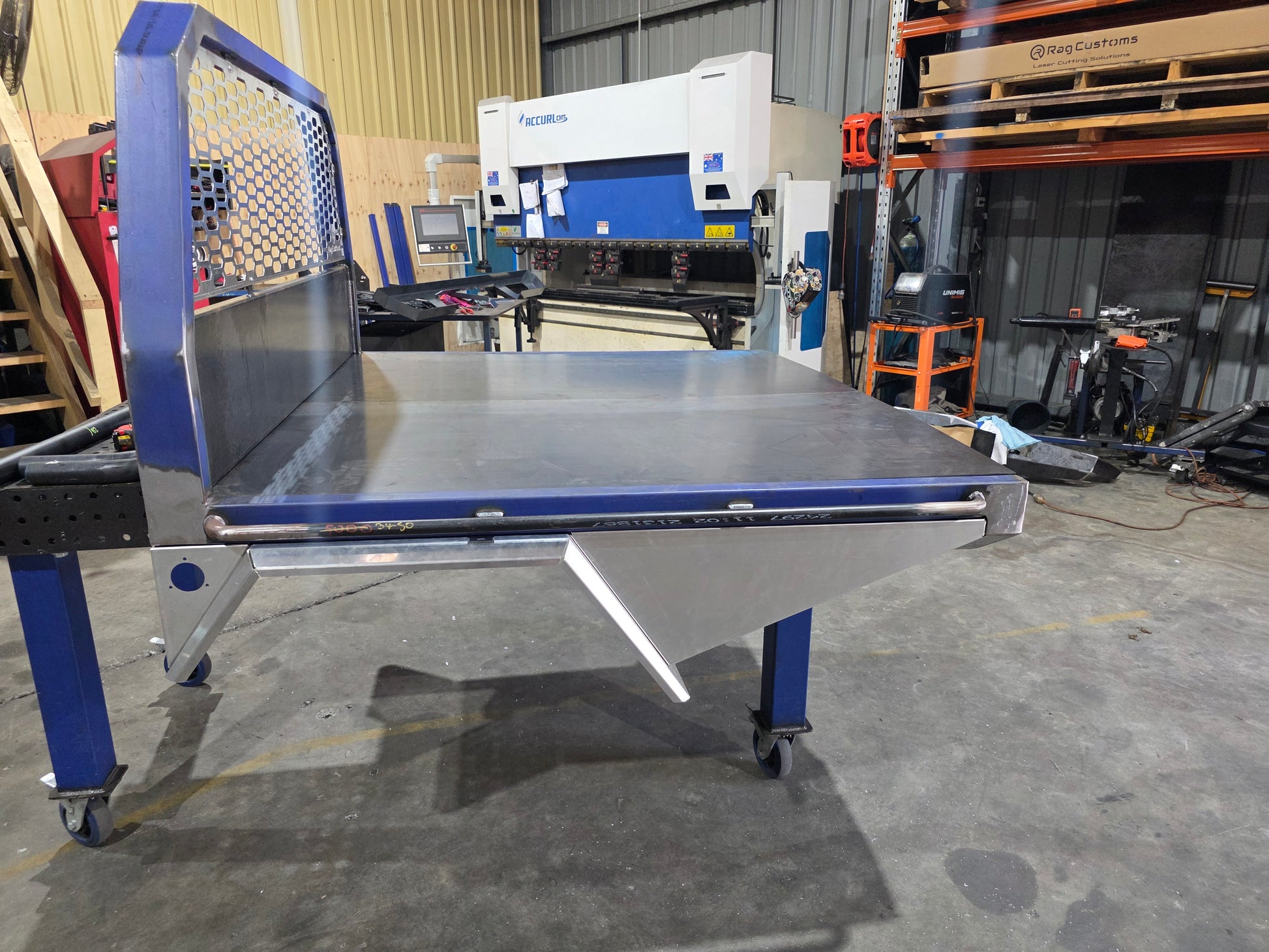

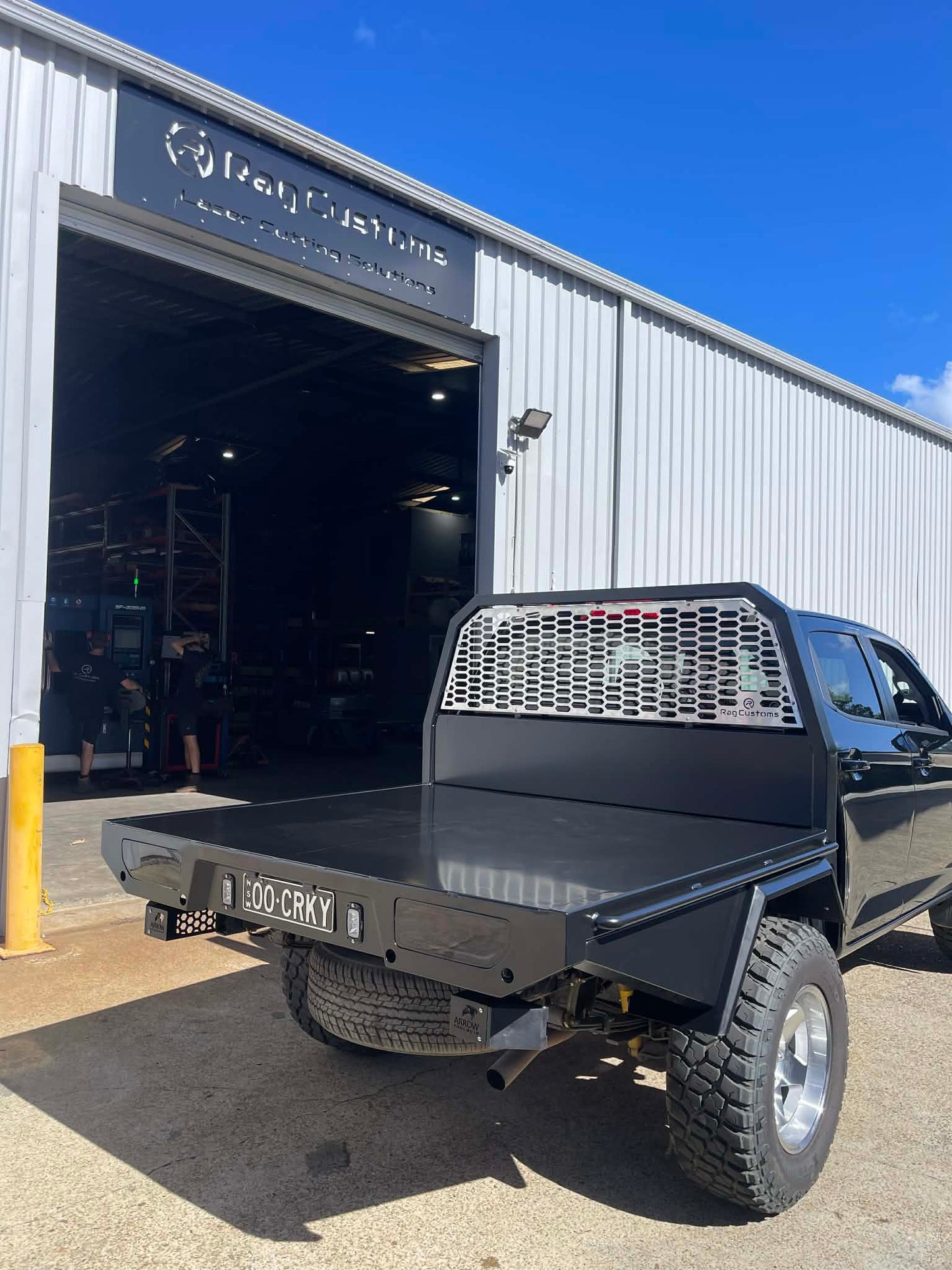

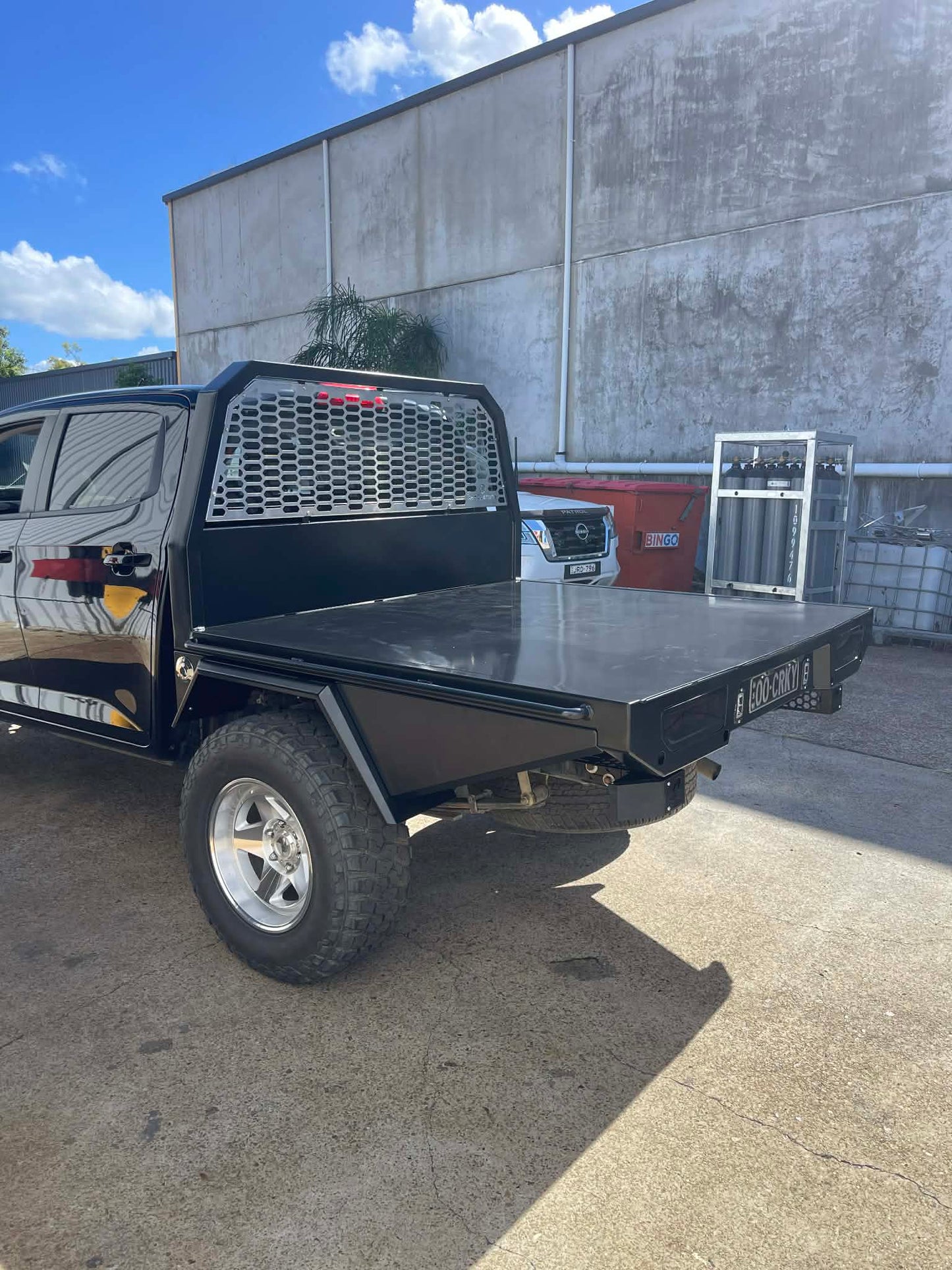

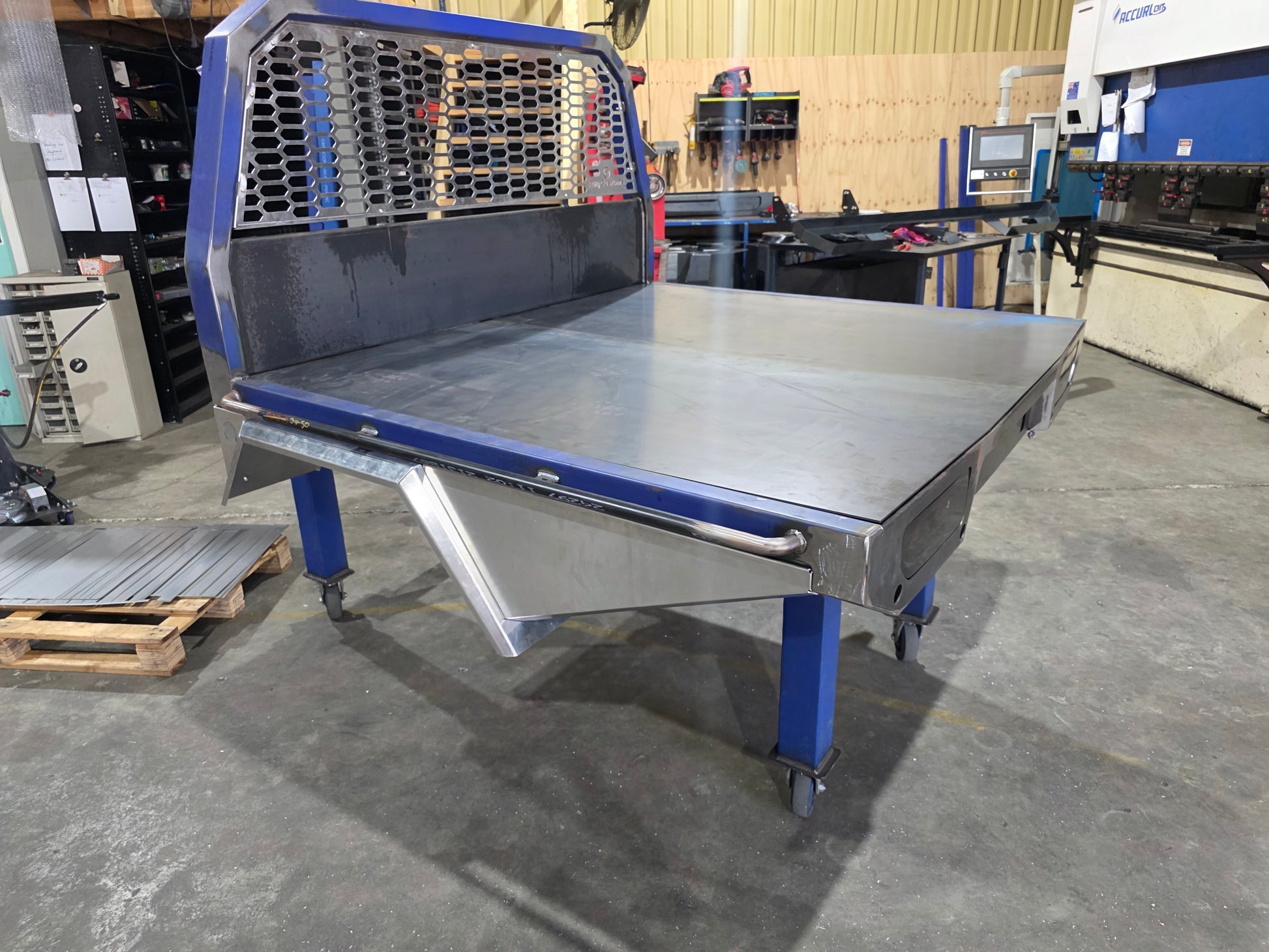

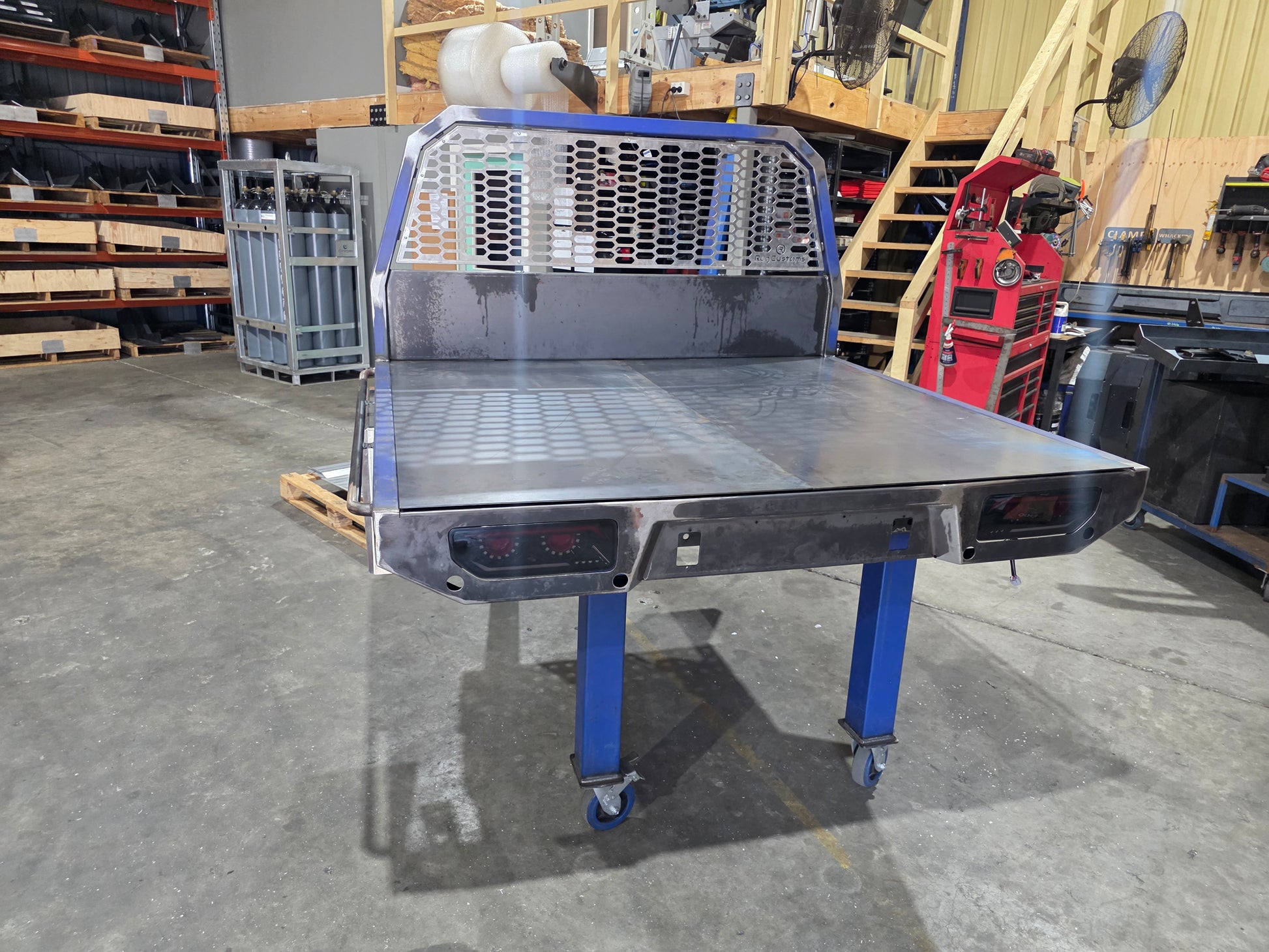

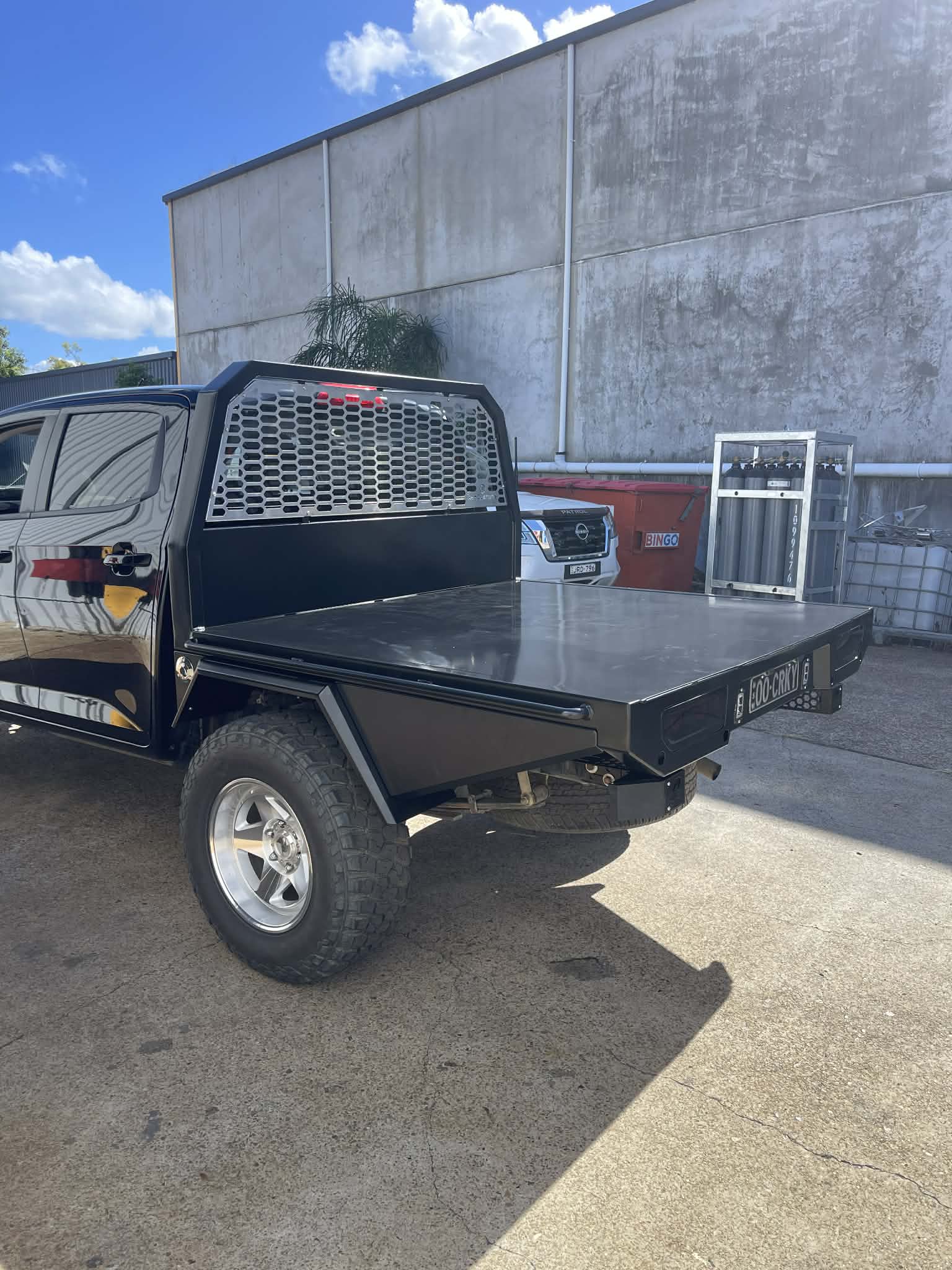

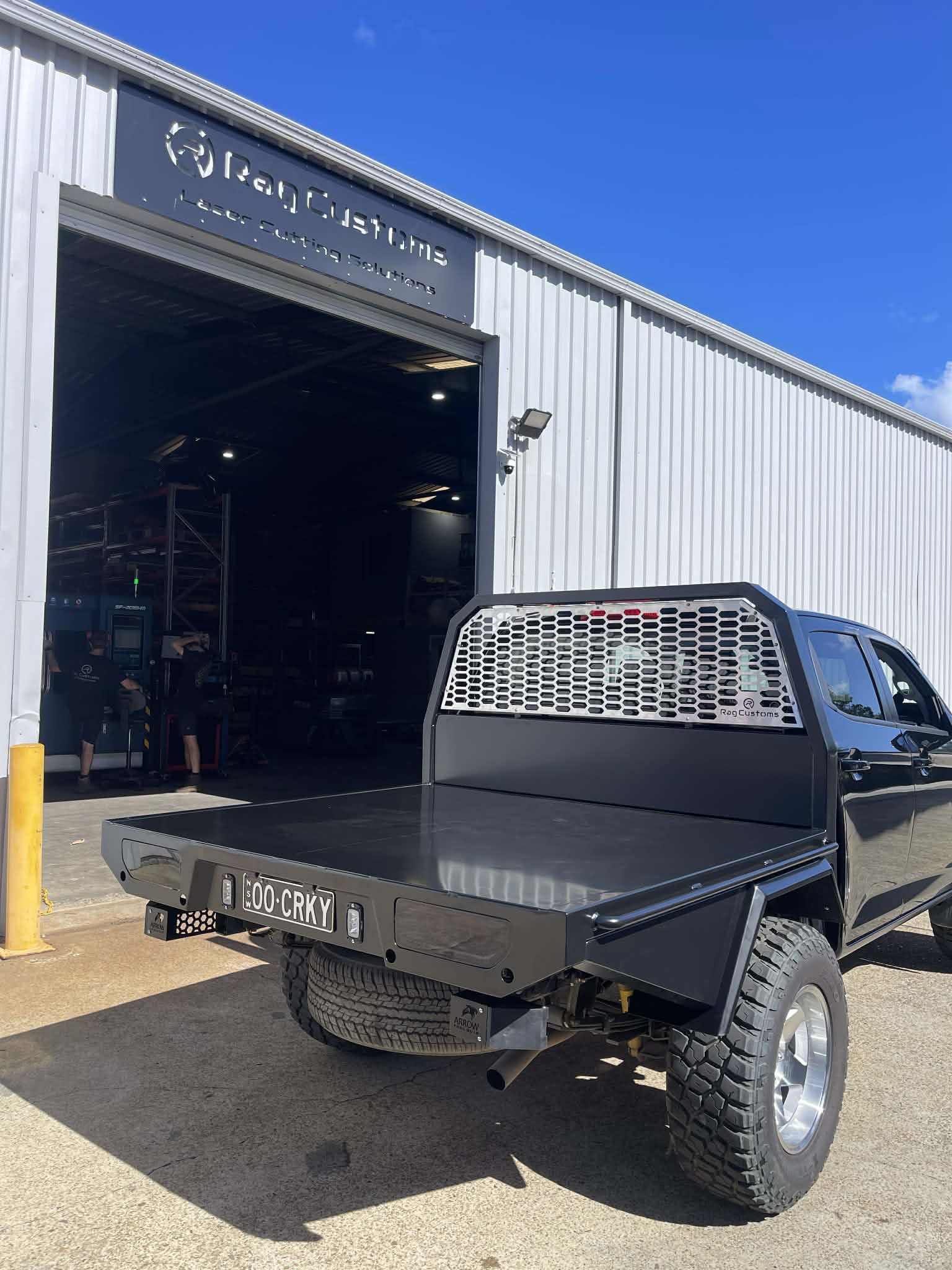

Dual Cab Ute Tray DIY Kit

DUALCAB UTE TRAY – DIY KIT

BT50 / DMAX Currently in stock

This is a full RHS-based structure using a mix of 50x50, 50x75 and 50x100 RHS, all precision laser cut with slot and tab construction for accurate alignment and repeatability.

If you're chasing a tray you can actually use — load it, strap to it, work off it — this is it.

🔧 What's Included

Main Structure

• 50x50x2 / 50x75x2 frame & 50x100x2 RHS headboard
• Fully laser cut with interlocking slots & tabs
• Designed for consistent, easy assembly

Rear Section

• One-piece rear tailboard – laser cut & folded from 3mm mild steel
• Suits Jimny style LED tail lights (lights not included)

Headboard

• 2mm aluminium laser cut & folded mesh infill
• 3mm steel lower infill panel

Mounting Options

• Universal laser cut & folded tray mounts – available in 0°, 5°, 10° & 15° offsets
• 150mm tall

Side & Infill Panels

• 3mm aluminium tray guards
• 2mm aluminium front & rear infill covers
• 3mm mild steel rear number plate infill panel (to suit Stedi Mini flush mount lights – not supplied)

Supplied Hardware

• Number plate lights
• All bolts & assembly hardware

📦 Parts Required Separately

• Jimny style LED tail lights
• 2 x Stedi Mini flush mount lights
• Fuel filler neck (depending on vehicle & positioning)
• Floor sheets

➕ Optional Extras

• 3mm steel / alloy flat floor sheet
• 3mm steel / alloy chequer plate floor sheet

📐 Tray Dimensions

• 1800mm Wide
• 1650mm Long
• 840mm High (from top of RHS side rails to top of headboard)

🚚 SHIPPING INFORMATION

Due to the size and nature of this product, freight is limited to commercial business addresses or depot collection only. These items cannot be delivered to residential addresses. Please provide a commercial address with forklift access, or your nearest freight depot for collection.

⏱️ Lead Times

DIY kits – 7–10 working days  |  Welded bars – 14–21 working days
