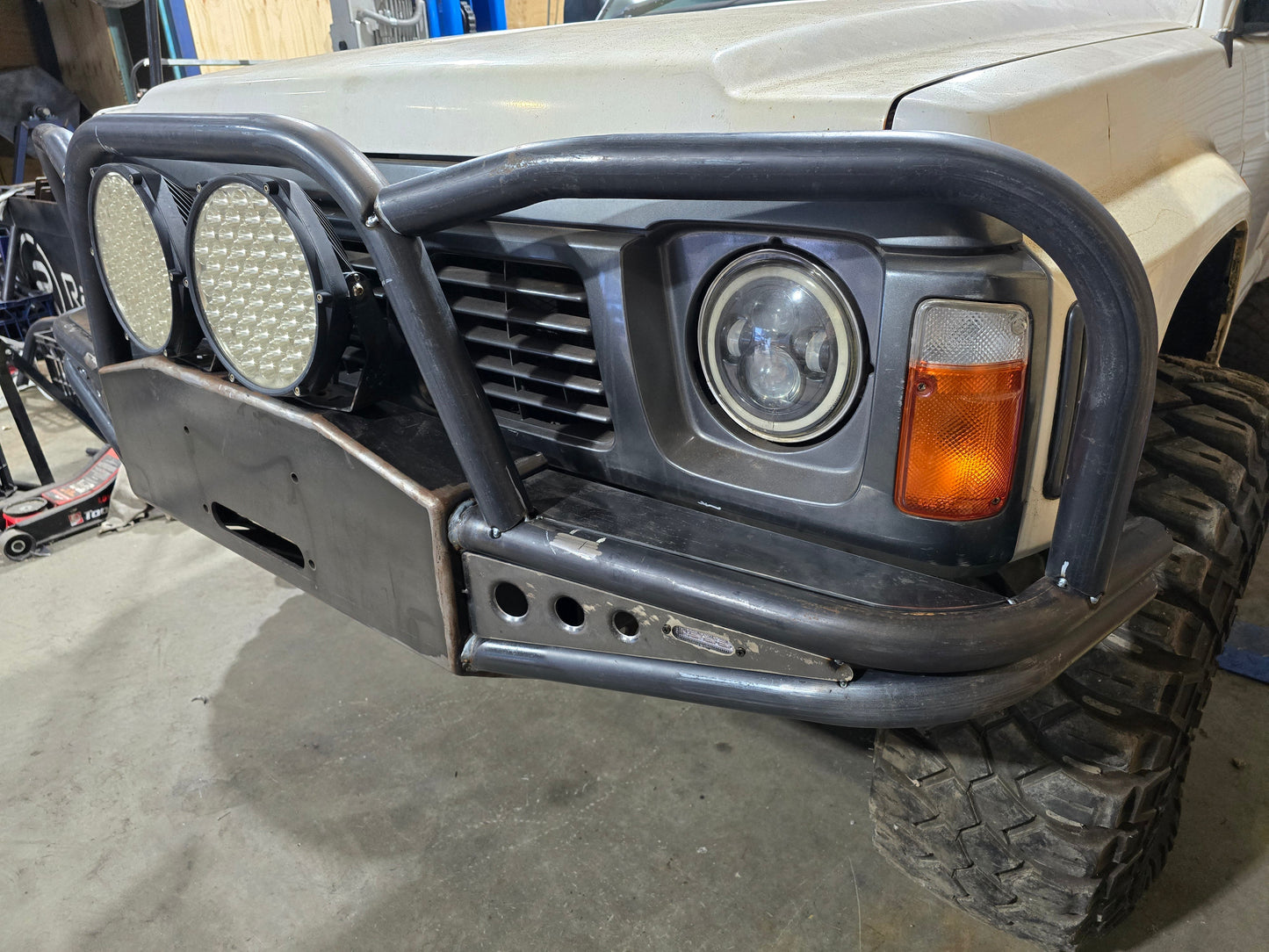

GQ Patrol Tourer Front Bar
GQ Patrol Tourer Front Bar
Couldn't load pickup availability
BUILT TO ORDER
Lead Time
Current build times on these bars are approximately 14 working days but please note this is subject to change if we receive a large amount of orders and we will update accordingly.
THE NITTY GRITTY
The GQ Patrol Tourer Front bar will suit ALL models from 1988-1997 and will suit for up to 2" body lift.
Supplied standard to suit low mount winches but can be made for standard or +76 high mount winch upon request.
If you would like to fit spot lights, this bar has been designed around the Stedi Type X Pro but will also happily accommodate any other lights up to 9"
All bars are supplied raw unpainted as standard unless powder coated option is selected at checkout - Please note powder coating will add approximately 10 working days to the lead times
PRICING PACKAGES
DIY Kit - Hoopless $800 + GST
DIY Kit - Triple Hoop $900 + GST
Complete welded - Hoopless $ 1300 + GST
Complete welded - Triple Hoop $1500 + GST
Satin black powder coating + $300 + GST
SPECS
- The centre cradle construction is made from CNC cut and folded 6mm mild steel with airflow slots on the bottom half of the bar
- Chassis brackets are a Chassis wrapping "U" bracket allowing easy fitment and 4x m14 bolts per side fixing it to the vehicle
- The side wings and top hoops are all built using 40nb 3.2mm wall tube
- Dimple infill plates and top wing infill both using 3mm mild steel
- Supplied standard with 1x aerial mount on either side hoop toward the centre of the bar
- All packages INCLUDE Narva ADR approved LED blinkers to be fit into wing infill plates
SHIPPING
Due to the size and weight restrictions with most couriers, we strongly recommend organising delivery to a business address with a forklift to unload to avoid additional freight charges.
However, if you do not have access to a business address please feel free to reach out as we have numerous collection depots AUSTRALIA WIDE that we utilise to be able to offer cheaper shipping options
Alternatively, residential shipping can be arranged but will incur a tail lift truck surcharge due to size and weight
