🔧 Build your own GU Patrol tube bullbar — and save serious coin doing it

Our GU Patrol tube-style bar is laser-cut in-house to suit all Series 1–4. The DIY kit turns up pre-bent, notched and ready to tack and weld — the hard part (getting every cut and bend right) is already done for you. If you can lay a basic MIG weld (or know a mate who can), you can build it in a weekend.

Prefer it done for you? Fully welded options are available too.

• ✅ Laser-cut precision — everything lines up, no guesswork
• ✅ Winch & recovery ready
• ✅ Australian-made, built by people who actually wheel

🧰 What you'll need: a MIG welder, angle grinder, clamps and a spare arvo.

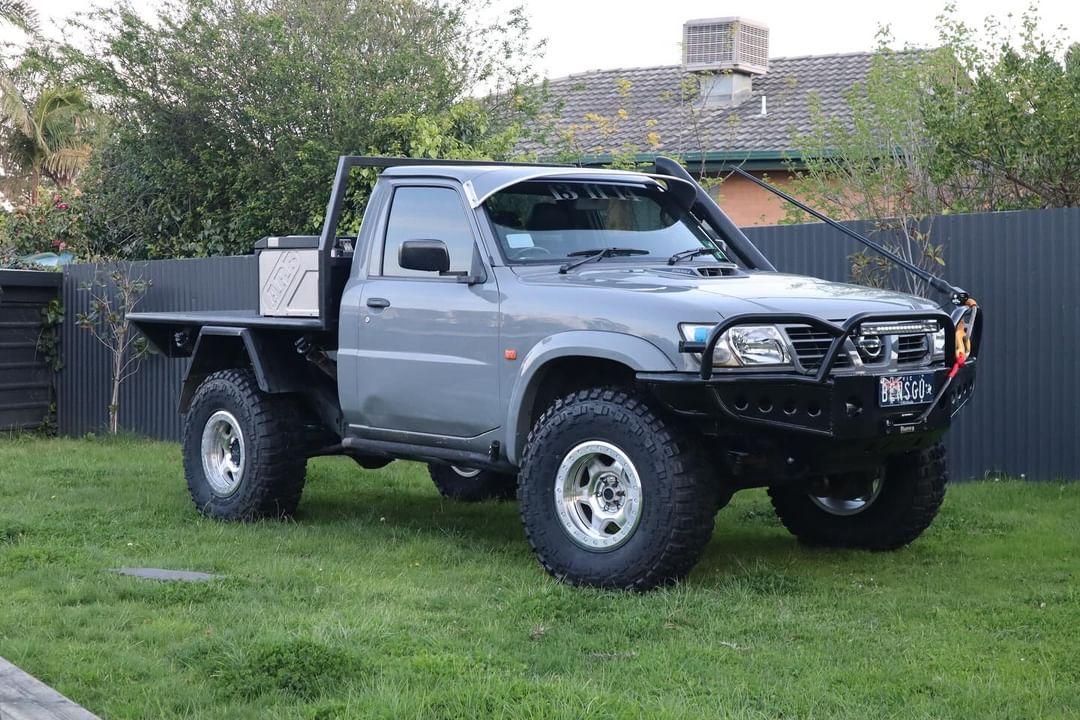

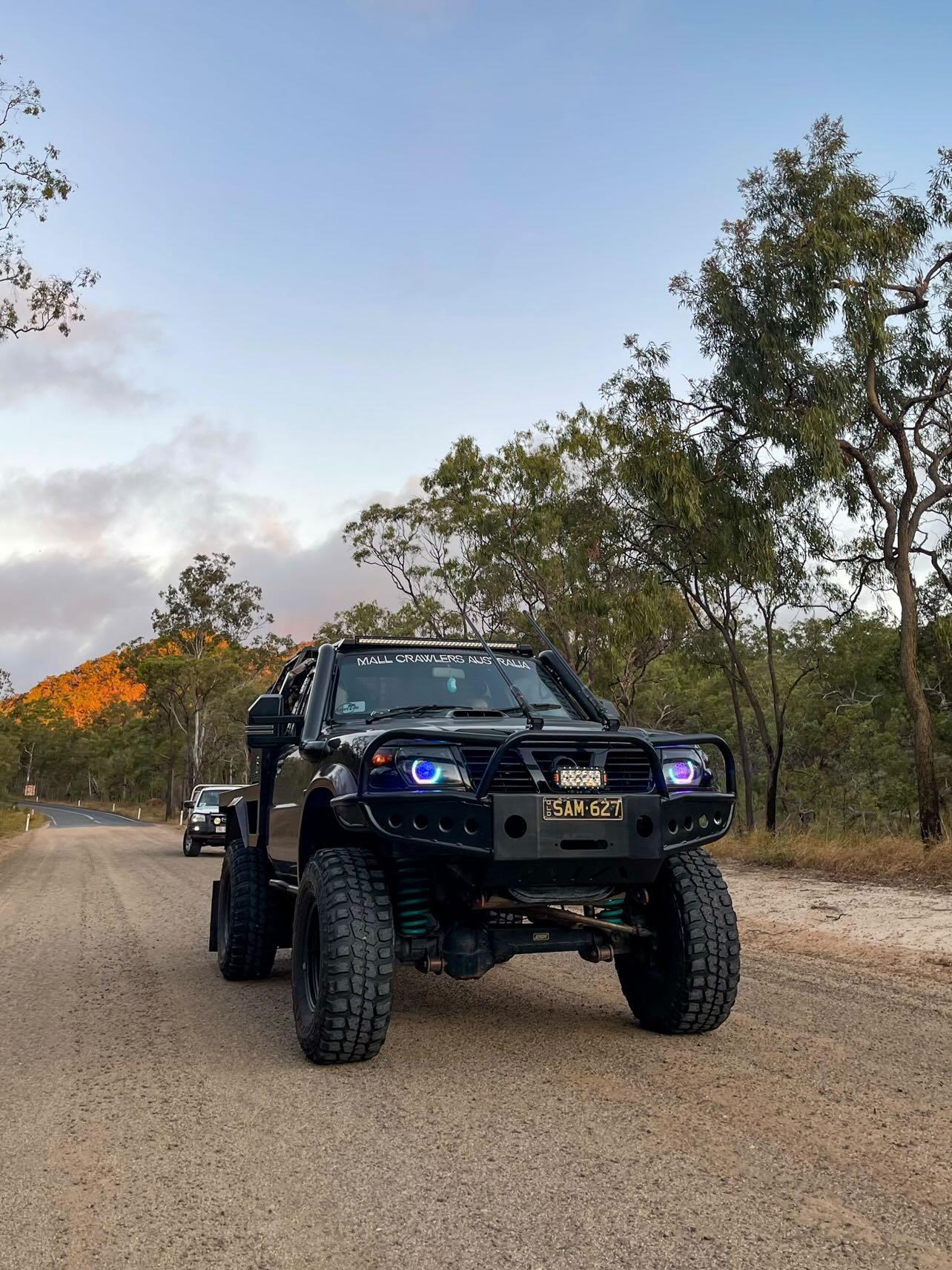

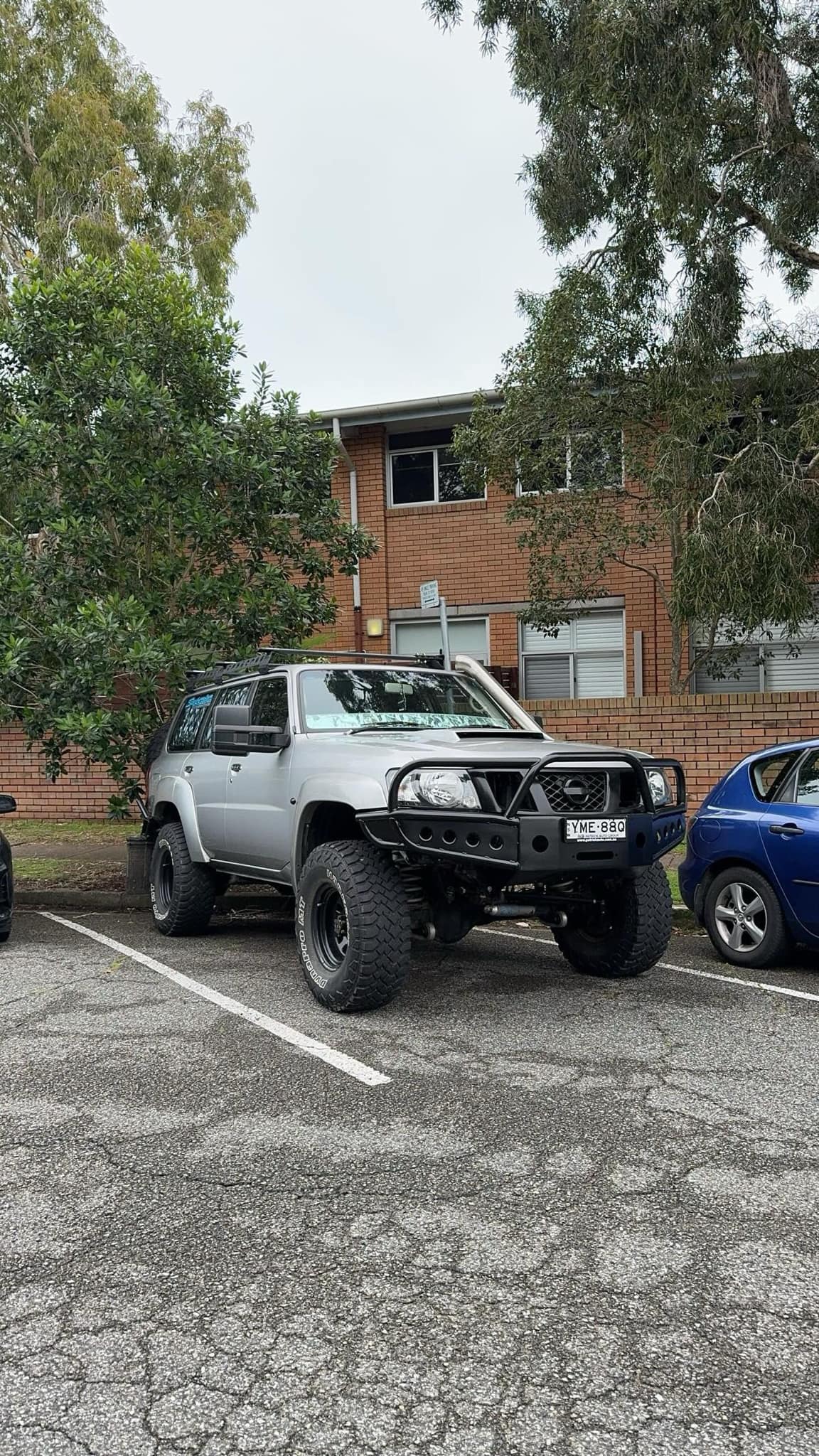

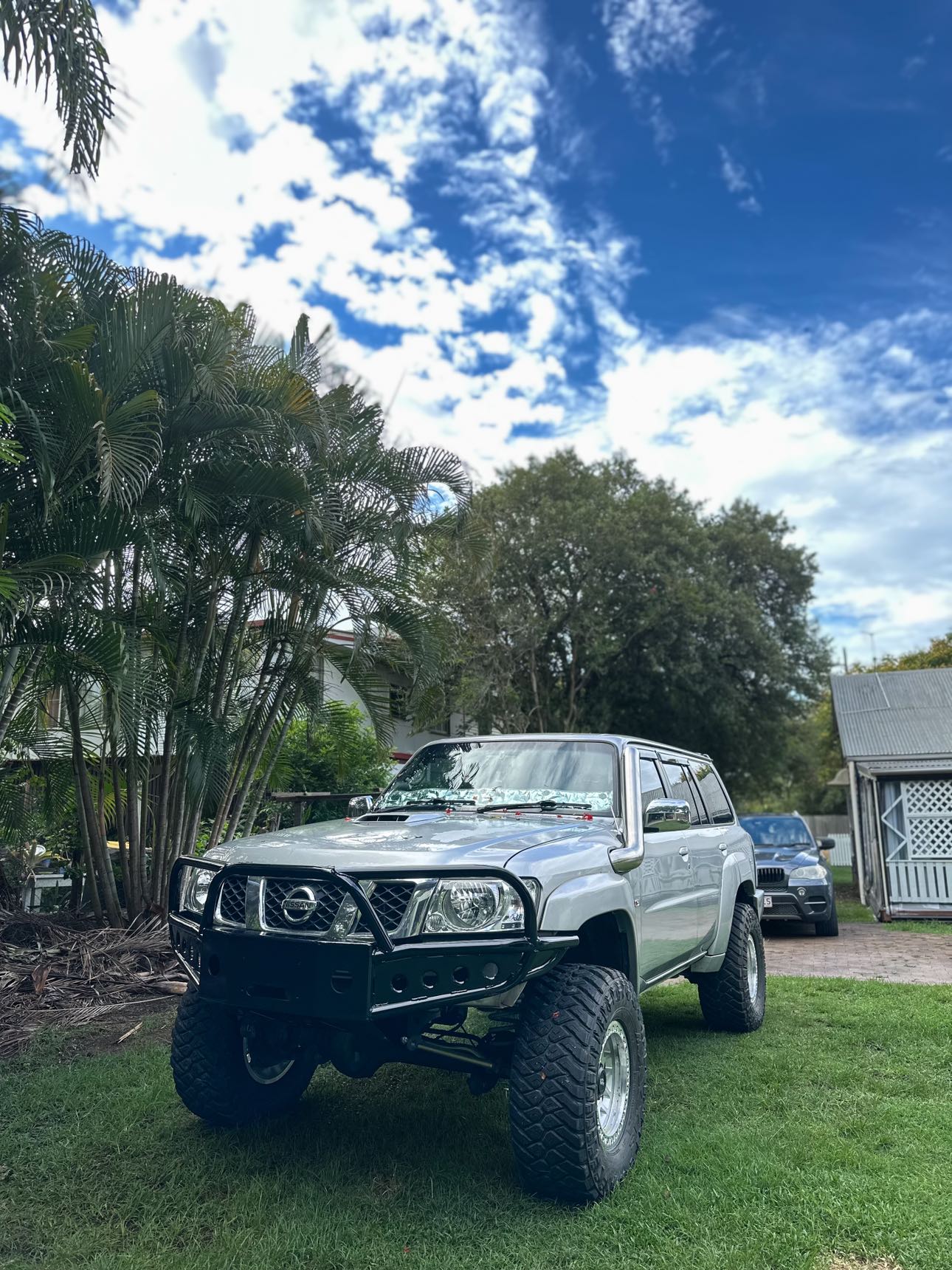

GU Patrol Tube Style Bullbar – S1–S3 & S4 Compatible

⚙️ Product Overview

Our GU Patrol Tube Style Bullbars are designed to suit all GU Series 1–4 models, offering clean styling with high-strength functionality.

• ✅ Supplied standard to suit low mount winches
• ✅ Optional upgrade to suit standard high mount winches (on request)
• ✅ S1–S3 bars are designed for 7" spotlights, but will fit 8.5" lights when mounted forward of the hoop
• ✅ S4 bars accommodate 8.5" spotlights with no modifications
• ✅ Supplied raw and unpainted until further notice
• ⚠️ Non-airbag compliant – for off-road use only
• ❌ No chassis cutting required

📐 Technical Specifications

• 🔩 One-piece 6mm CNC-cut centre cradle with airflow slots for cooling
• 🔧 Slotted adjustable brackets – 4x M12 bolts per side
• 🧱 40NB x 3.2mm wall tube used for side wings and top hoops
• 🪓 Dimple infill plates and top wing panels made from 3mm mild steel
• 📡 1x aerial mount per side hoop
• 💡 LED blinkers included in all packages, designed to fit wing infill plates

📦 What's Included

DIY Kit – Cradle Only

• 1x One-piece folded 6mm centre cradle
• 2x Folded 6mm inside chassis mounts
• Full mounting hardware kit

DIY Kit – Complete Bar Assembly

• 1x One-piece folded 6mm centre cradle
• 2x Folded 6mm inside chassis mounts
• Full mounting hardware kit
• 2x Top wings (pre-bent)
• 2x Bottom wings (pre-bent)
• Bullbar hoop set (pre-bent)
• 2x Aerial mounts
• 2x Front dimple infill plates
• 2x Top wing dimple infill plates (S1–S3 only)
• 2x CNC-cut 6mm wing braces
• 4x Tube caps
• 2x LED blinkers
• Full set of CAD-designed wrapper templates for accurate tube notching
• 📘 Step-by-step instructions included for an easy and confident DIY assembly

Fully Welded Bar

• Fully assembled and welded bullbar – Raw Unpainted
• Full mounting hardware kit
• 2x LED blinkers

⚠️ Important – Build It to Your Vehicle

All DIY kits must be built to the car to ensure accuracy and alignment. Please check all components for fitment before you begin, and contact us immediately with photos if any parts don't seem correct.

🚚 Shipping Information

Due to the size and weight of these bullbars:

• We highly recommend shipping to a business address with forklift access to avoid additional handling fees.
• Don't have one? No worries – we offer pickup from collection depots Australia-wide to keep freight costs down.
• Residential delivery is also available, but will incur a tail-lift truck surcharge due to freight size and weight.

Need help choosing the right bar or have questions about assembly? Contact our team and we'll get you sorted.

⏱️ Lead Times

DIY kits – 7–10 working days | Welded bars – 14–21 working days

💬 Not sure it suits your rig? Message us your build and we'll confirm fitment before you buy.
