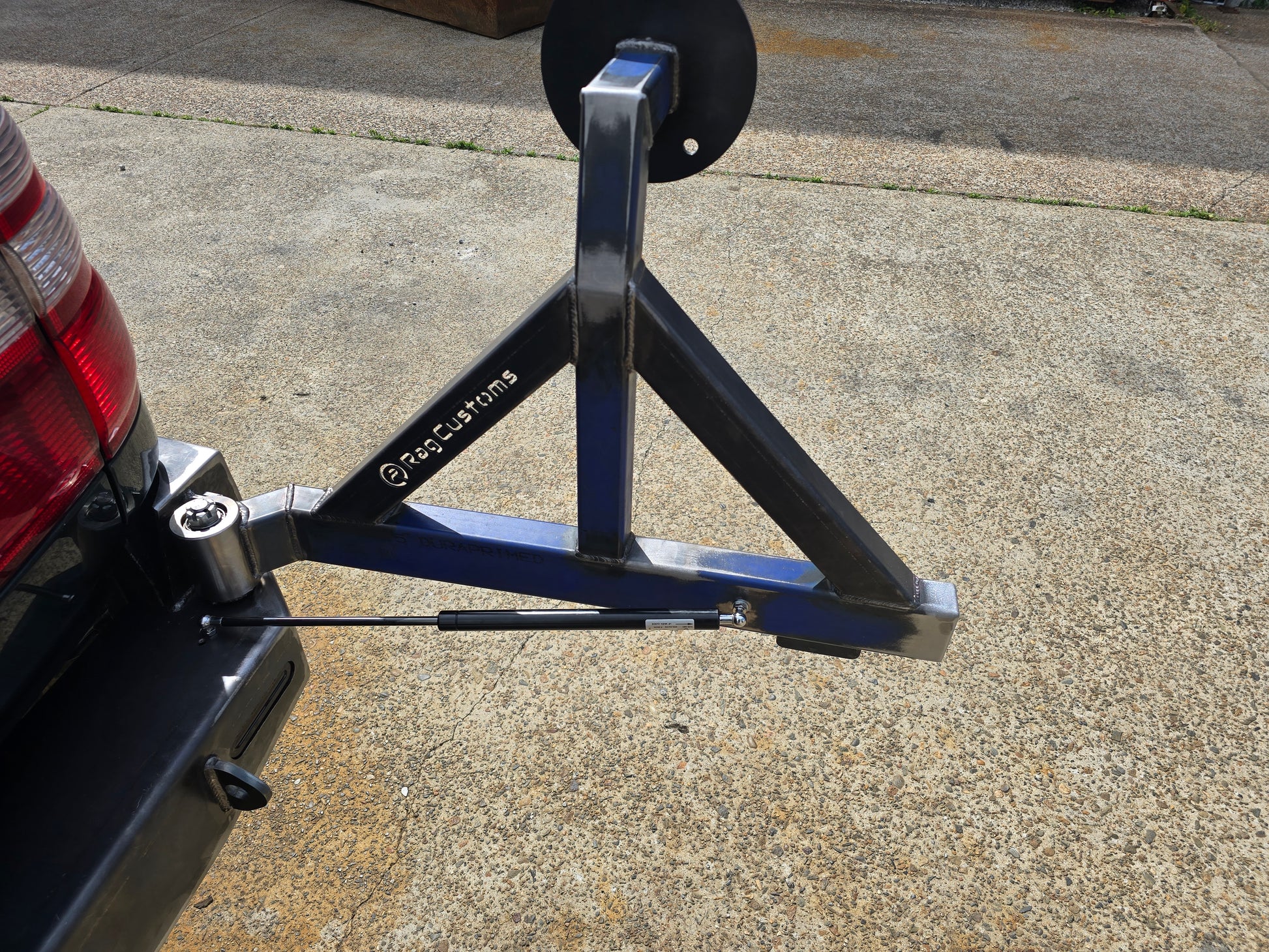

Tyre Carrier Arm RHS — DIY Weld-Together Kit

Designed for Strength, Clearance & Perfect Angles

Our Tyre Carrier Arm RHS DIY Kit is built for fabricators and 4WDers chasing a strong, accurate and professional swing-out tyre carrier base. With laser-cut angle notches built directly into both RHS arms, this kit eliminates guesswork and ensures repeatable, accurate results during assembly.

Engineered to suit plate-style rear bars, the design balances strength, rear door clearance, and correct wheel positioning for a practical and trail-ready setup.

🔥 Key Features

  • ✅ Main RHS arm features a 45° laser-cut notch — ideal for plate-style rear bar integration

  • ✅ Upright RHS arm includes dual-angle design to:

    • Maximise clearance to rear doors

    • Achieve a total 90° upright position at the wheel face

  • ✅ Laser-cut alignment notches for guaranteed accuracy

  • ✅ DIY weld-together kit — customise to your build

  • ✅ Rated to suit up to 35" tyres

  • ✅ Designed to be trimmed to suit your rim offset & desired stick-out

  • ✅ Tyre carrier plate available in:

    • 5×150 PCD

    • 6×139.7 PCD

🧩 What’s Included

  • 800mm Main RHS swing arm with 45° angle notch

  • 450mm Upright RHS arm with dual-stage angles for clearance and 90° wheel face

  • Folded 3mm steel support braces

  • Tyre carrier plate (5×150 or 6×139.7 PCD)

  • Wheel studs pre-supplied – generic Ford trailer studs
    (Common hardware for easy future sourcing and replacement)

This is a base fabrication kit — pivot/spindle, latch, gas strut and bumper mounting hardware not included.

📏 Dimensions

Component Size / Detail
Main RHS arm 800mm length + 45° notch
Upright RHS arm 450mm to wheel centre
Total Angle at Upright 90°
Tyre Suitability Up to 35"
Offset Adjustment Trim to suit rim offset & stick-out preference

🧰 Fabrication & Fitment Notes

⚠️ Designed for integration into plate-style rear bars
⚠️ Final wheel position is adjustable by trimming arm to suit your offset
🔧 MIG or TIG welding recommended
🔧 Best suited to capable DIY builders & fabricators

🛠️ Assembly Rating

🔧🔧🔧🔧▫️ Medium–Advanced

  • Laser-cut notches remove angle guesswork

  • Saves time on setup and alignment

  • Still allows full custom positioning to suit your build

🚚 Lead Times & Shipping

  • 3–5 business day processing

  • Australia-wide shipping available

  • Local pickup from Cardiff, NSW
