Universal Dualcab Tray Kit

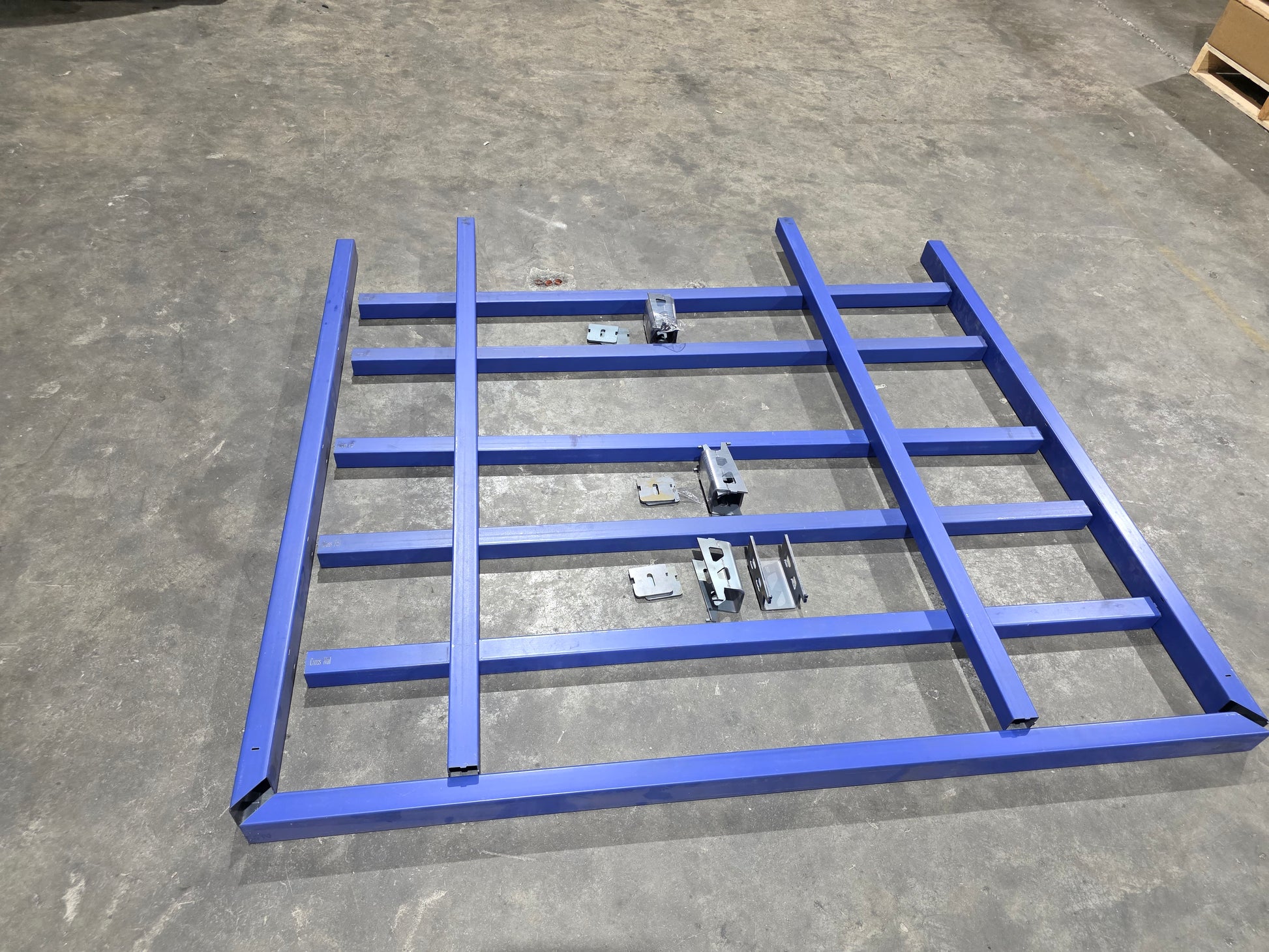

1. DUAL CAB UTE TRAY — FRAME ONLY DIY KIT

Need the bones of a solid tray without paying for extras you don’t need?

This Frame Only DIY Kit gives you the full RHS tray structure, precision CNC laser cut with slot-and-tab construction so it lines up clean, welds together easier, and gives you a strong base to build from.

Built using a mix of 50x50, 50x75 and 50x100 RHS, this is a proper usable tray frame — designed to be loaded, strapped to, worked from and customised to suit your setup.

What’s Included

✅ 50x50x2 / 50x75x2 RHS main frame
✅ 50x100x2 RHS headboard rail/frame sections
✅ Precision laser cut slot-and-tab RHS components
✅ Universal CNC cut and folded tray mounts
✅ Mount options available in 0°, 5°, 10° and 15° offsets
✅ 150mm tall tray mounts
✅ All required frame assembly hardware

Tray Dimensions

1800mm wide
1650mm long
840mm high from top of RHS side rails to top of headboard

Please Note

This is a DIY weld-together fabrication kit and will require welding, finishing and final fitment. We recommend prior fabrication experience.

Laser cut components are made to tight tolerances, however please allow ±2mm variance due to material fluctuations.

Shipping

Bulky freight only. Shipping is limited to a commercial business address with forklift access or nearest depot collection.

Get in today while they’re available.

---

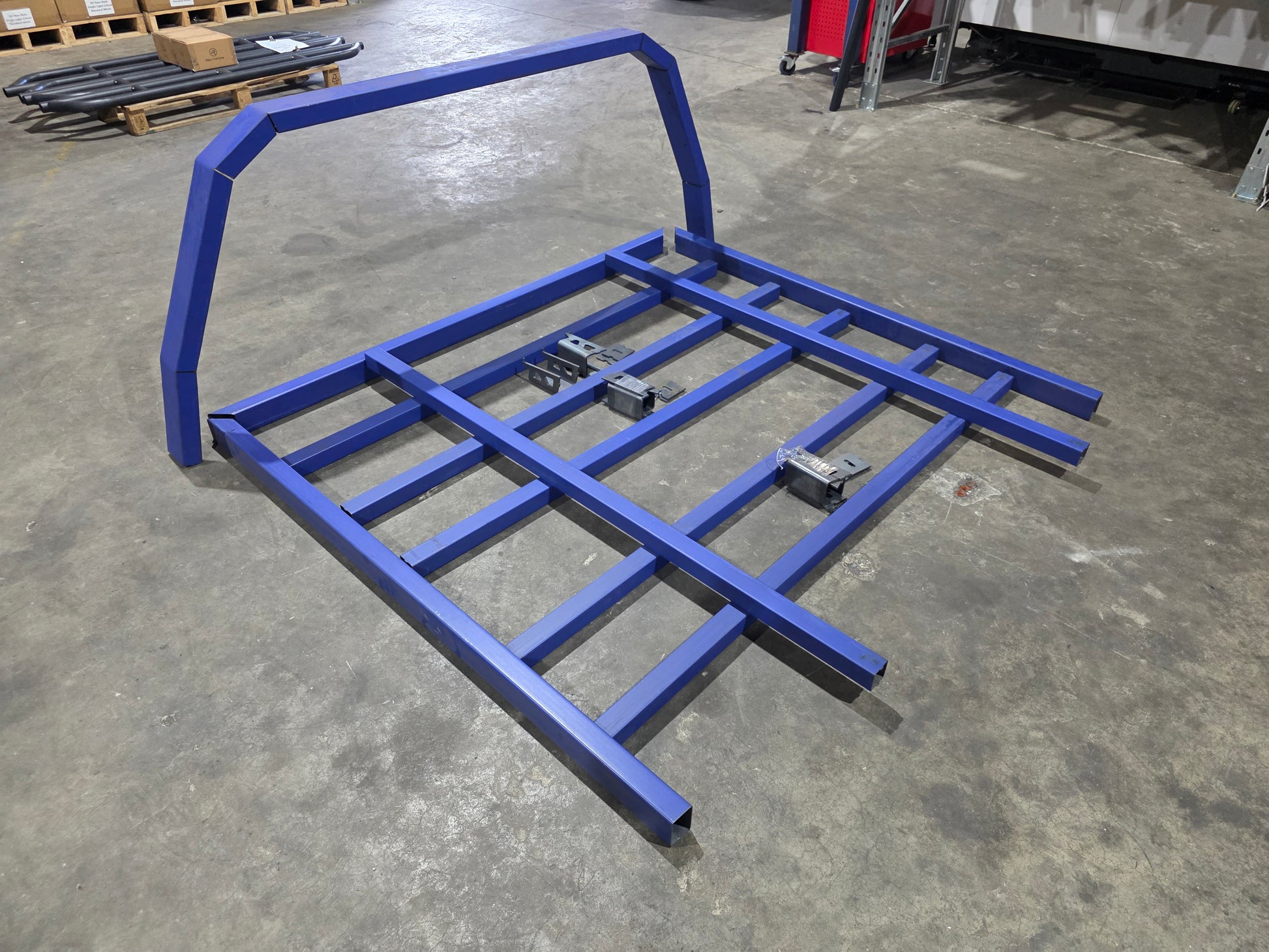

2. DUAL CAB UTE TRAY — FRAME + HEADBOARD DIY KIT

This kit gives you the full RHS tray frame plus the headboard structure, giving you a stronger, more complete starting point for your custom dual cab tray build.

If you want a tray that’s practical, strong and actually usable — not just for looks — this is the kit to start with.

The tray is built around a full RHS-based structure using 50x50, 50x75 and 50x100 RHS, all CNC laser cut with interlocking slot-and-tab construction for easier assembly and repeatable alignment.

What’s Included

✅ 50x50x2 / 50x75x2 RHS main tray frame
✅ 50x100x2 RHS headboard structure
✅ CNC laser cut slot-and-tab construction
✅ Designed for consistent, easy assembly
✅ Universal CNC cut and folded tray mounts
✅ Mount options available in 0°, 5°, 10° and 15° offsets
✅ 150mm tall tray mounts
✅ All required assembly hardware

Why This Kit?

Built to be strong, usable and customisable. Perfect if you want to build your own tray, add your own floor, guards, boxes, lights or accessories, and still start with a properly designed laser-cut base.

Tray Dimensions

1800mm wide
1650mm long
840mm high from top of RHS side rails to top of headboard

Please Note

This is a DIY weld-together fabrication kit and will require welding, finishing and final fitment. Prior fabrication experience is recommended.

Laser cut components are made to tight tolerances, however please allow ±2mm variance due to material fluctuations.

Shipping

Due to the size of this kit, freight is limited to a commercial business address with forklift access or depot collection only.

currently in stock — available today.
First in, best dressed.

---

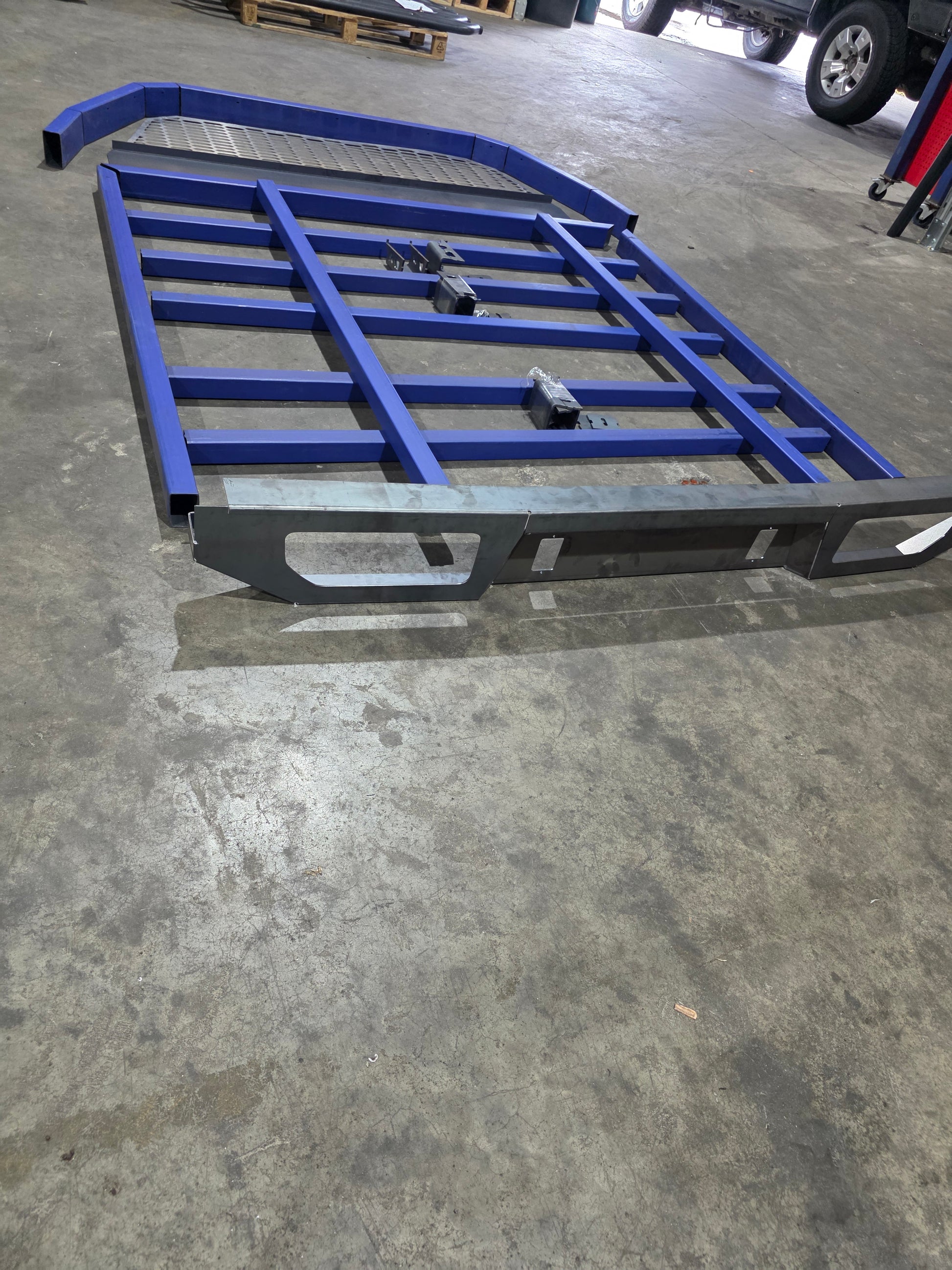

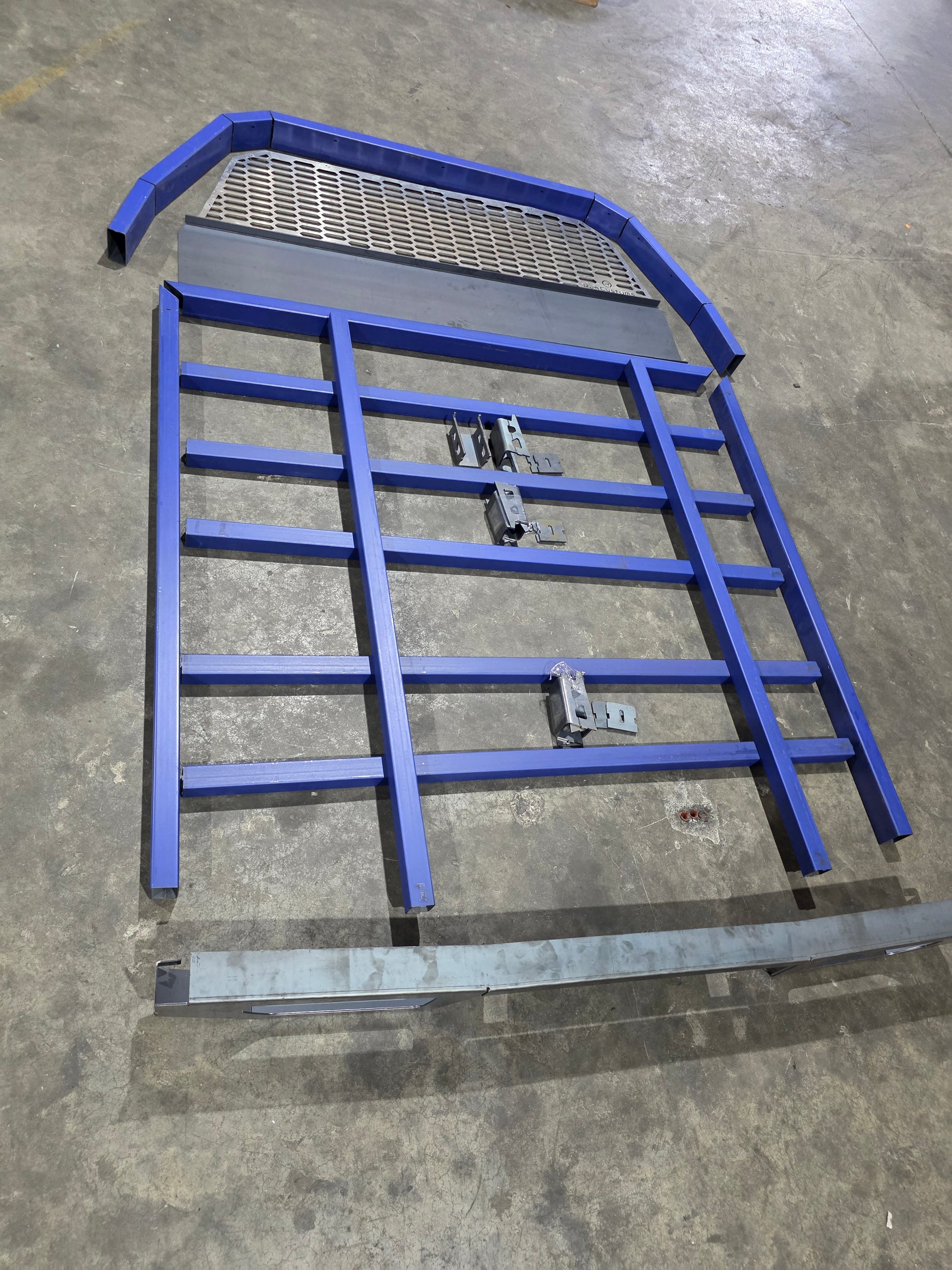

3. DUAL CAB UTE TRAY — FRAME + HEADBOARD + INFILL PANELS DIY KIT

Want the tray base, headboard and key infill panels sorted in one kit?

This package gives you the RHS tray frame, full headboard structure, steel headboard infill, aluminium mesh panel and rear steel panel — a solid starting point for a clean, functional dual cab tray build.

Designed around a strong RHS structure using 50x50, 50x75 and 50x100 RHS, every main component is CNC laser cut for accurate fitment, cleaner assembly and repeatability.

If you’re chasing a tray you can actually use — load it, strap to it, work off it — this is it.

What’s Included

Main Structure

✅ 50x50x2 / 50x75x2 RHS tray frame
✅ 50x100x2 RHS headboard structure
✅ CNC laser cut slot-and-tab construction
✅ Designed for consistent, easy assembly

Headboard + Infill Panels

✅ 3mm steel lower headboard infill panel
✅ 2mm aluminium laser cut and folded mesh headboard infill
✅ Steel rear panel / rear number plate infill panel

Mounting

✅ Universal CNC cut and folded tray mounts
✅ Available in 0°, 5°, 10° and 15° offsets
✅ 150mm tall tray mounts

Supplied Hardware

✅ Number plate lights
✅ Assembly bolts and hardware required for the supplied kit

Parts Required Separately

You will still need to source depending on your final setup:

Jimny style LED tail lights
Stedi Mini flush mount lights
Fuel filler neck
Floor sheets
Tray guards / side panels if required

Optional Extras

3mm steel or aluminium flat floor sheet
3mm steel or aluminium chequer plate floor sheet
3mm aluminium tray guards
Front and rear aluminium infill covers

Tray Dimensions

1800mm wide
1650mm long
840mm high from top of RHS side rails to top of headboard

Please Note

This is a full DIY fabrication kit and will require welding, finishing and painting. We’ve designed it to assemble as logically as possible, but prior fabrication experience is recommended.

Laser cut components are manufactured to tight tolerances, however please allow ±2mm variance due to material fluctuations.

Shipping

This is bulky freight. Delivery is limited to a commercial business address with forklift access or nearest depot collection only. Residential delivery is not available.

Get onto one before they’re gone.
